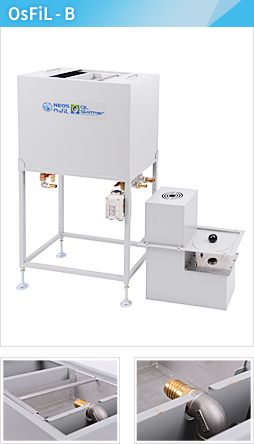

Built in Type

Main Function & Operation Type

Skimming( downward suction collecting) the wasted oil on the
surface of the tank height (175mm, 250mm, 300mm, 400mm)
The most advanced technology based on the bernoull’s theory,
the difference of pressure and speed between Skimmer pump
and Floating downward suction unit in the world.

Potential Customers

Compressor condenser and Coolant Tank of Automotive Part's
Machining Factory with CNC lathe and Machining Center,
Washing machinery

Purpose

To skim the lubricant on the surface of coolant in the
coolant tank

Feature

  • 1  Downward suction collecting through the floating suction
        unit from the tank
  • 2  Lift Height 1m under the ground tank
  • 3  World wide Patent Technology with bernoull’s theory
  • 4  The floating suction unit’s self adjusting within 10cm to adopt the level of coolant surface
  • 5  Easy to install the built in tank into the coolant tank.
  • 6  Separate the floating particles through the basket filtering net
  • 7  Separate Wasted oil in the separator tank and drop & collect to the plastic bottle.
  • 8  Filtered Coolant is to auto influx to the original tank.

Specification

  • Applied Machine Tool : Compressor Condenser, Machining Center ,Washing machinery
  • How to operate : bernoull’s theory
Capacity 120~200ℓ/h Weight 60kg
Separator Tank Capacity 40ℓ Dimension 500*300*1053mm (w*L*H)
Lift Height 1m Under ground tank Separator Tank 500*300*453mm (w*L*H)
Electricity 220V/60/50Hz single phase Fluid Temperature below 80℃
Motor 100W PH 6~11
Material SS or SUS

Attention to Install

  • 1  Install the product with Separator tank horizontally on the level
  • 2  Fill in the clean coolant to upper 10cm of the floating suction unit for the operation
       (Always minimum upper 5 mm of the floating suction unit should be maintained )
  • 3  Check the Inlet and outlet’s Function under the bottom of the product
  • 4  Understand the patented structure of separator tank, Coolant level control lever for coolant and Oil drain
        control lever for oil outlet
  • 5  Prepare for the plastic bottle to collect the wasted lubricant

Attention to Operate

  • 1  Remove the small particles on the basket filter screen often.
  • 2  Remove the small magnetic particles on the magnetic plate under the basket filter screen(option)
  • 3  Clean the bottom of Separator tank when there are a lot of sludge on the bottom. Before cleaning,
        Open the drain valve under the tank and clean with air-gun efficiently.
  • 4  For Compressor’s condenser, more than 10 times should be circulated in the closed tank.
       (Option : Closed tank : 300 liter)
